Installing Nexus S Front Panel Assembly

Send this link via e-mail


Step 1 - Rear Panel

  • Carefully insert a plastic opening tool between the rear panel and the inner rear frame near the rear-facing camera.

  • Pry up the rear case around the edges of the Nexus S using your plastic opening tool.

Step 2

  • Now, the rear panel can be removed from the Nexus S.

Step 3 - Battery
Back to top

  • Lift the battery from the end closest to the headphone jack using the edge of a plastic opening tool.

  • Now the battery can be removed from the Nexus S.

Step 4 - SIM Card
Back to top

  • Slide the SIM card downwards from the SIM card slot using your thumb.

  • Remove the SIM card.

Step 5 - Rear Inner Frame
Back to top

  • Six Phillips screws securing the rear inner frame to the inner case need to be removed.

Step 6

  • Carefully insert the flat edge of a plastic opening tool in between the rear inner frame and the top left corner of the Nexus S.

  • Pry the opening tool upwards to pop the top right corner from the clips securing it to the inner assembly.

Step 7

  • Insert the plastic opening tool to the right of the power button.

  • In order to release the clips on the right side, you need to slide the plastic opening tool downwards along the edges of the Nexus S.

thumb image 1
thumb image 2

Step 8

  • Release the bottom clips located near the bottom of the Nexus S in the same way as previously described.

Step 9

  • In order to release the final clip securing the rear inner frame to the inner assembly, you need to insert and pry the plastic opening tool.

Step 10

  • Lift and remove the rear inner frame from the Nexus S.

Step 11 - Motherboard
Back to top

  • Disconnect the following cables from the corresponding sockets on the motherboard:

  • Headphone jack cable

  • Digitizer cable connector

  • Camera/SIM board connector

thumb image 1
thumb image 2
thumb image 3

Step 12

  • Insert the flat edge of a plastic opening tool underneath the headphone jack connector and pry upwards.

  • Make sure to pry on the connector and not the socket itself, as prying the socket may cause serious damage.

  • Repeat the procedure for the digitizer and rear camera/SIM board connectors.

Step 13

  • Remove the three Phillips screws securing the motherboard to the front display assembly.

thumb image 1
thumb image 2

Step 14

  • Wedge the plastic opening tool near the bottom right corner of the motherboard and pry upwards to dislodge it from its recess.

  • Lift and remove the motherboard.

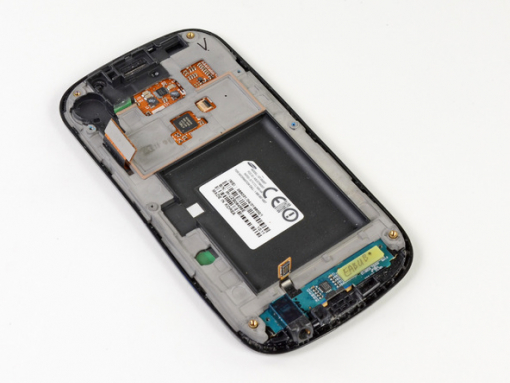

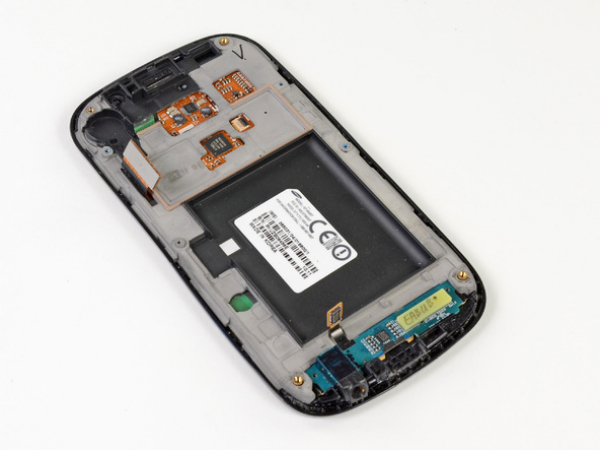

Step 15 - Front Panel Assembly
Back to top

  • Front panel assembly remains.
